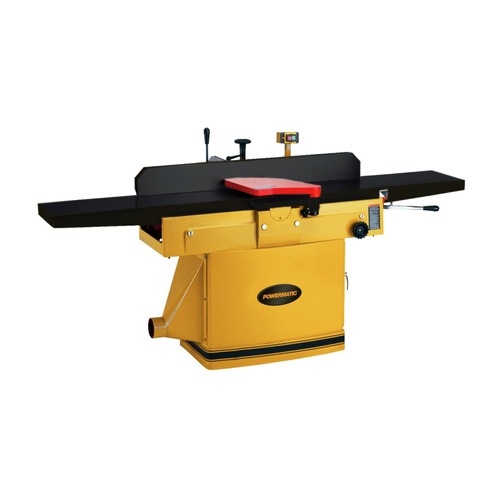

Powermatic 1285T 230V 3-Phase 12 in. Helical Cutterhead Parallelogram Jointer with ArmorGlide

Powermatic Model: PM1-1791308T

Enter your email address and we'll let you know when it's available

OUT OF STOCK
CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to chemicals including Lead, a chemical known to the State of California to cause Cancer and Birth Defect/Reproductive Harm and Lead and lead compounds, a chemical known to the State of California to cause Cancer. For more information go to www.P65Warnings.ca.gov.
Powermatic 1285T 230V 3-Phase 12 in. Helical Cutterhead Parallelogram Jointer with ArmorGlide Powermatic Model: PM1-1791308T

Product Features & specs :

Powermatic PM1-1791308T 1285T 230V 3-Phase 12 in. Helical Cutterhead Parallelogram Jointer with ArmorGlide

Details

Now featuring ArmorGlide Technology that is low-friction and rust-resistant, the Powermatic 1285T 12 in. Jointer offers big capacity, and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily via rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45 degrees in and out, and a positive stop for perfect 90 degrees angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. This model features a helical cutterhead.

Features:

  • ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control

  • Helical cutterhead features (42) 2-sided carbide inserts for fast knife changes with no adjustments and a quiet, clean cut

  • Large 12 in. x 84 in. precision-ground cast iron table surface for heavy-duty work

  • Parallelogram design ensures close table-to-cutterhead proximity and fast depth of cut adjustments

  • Rack and pinion adjustable cast iron fence assembly allows for smooth fence positioning without play

  • Table "lips" on both sides of cutterhead aid in noise reduction

What’s Included:

  • 1285T 230V 3-Phase 12 in. Helical Cutterhead Parallelogram Jointer with ArmorGlide - PM1-1791308T

Power Source

Corded

Fence Length

47-1/4 in

PreWired Voltage

230V

Wifi compatibility

No

Bluetooth Compatibility

No

Cutterhead Speed (RPM)

5000

No. of Knives

3

Knife Width

1-3/16 in

Knife Thickness

1/8 in

CSA Safety

No

Dust Port Size

4 in

Knife Length

12 in

Rabbeting Capacity

3/4 in

Motor Phase

3

Horsepower

3

Voltage

230V

Max. Cut Capacity (Depth)

3/4 in

Max. Cut Capacity (Width)

11-3/4 in

Cutterhead Style

Helical

Length

84 in.

Width

38 in.

Height

44 in.

Weight

762 lbs.

Warranty Term

5 Year
