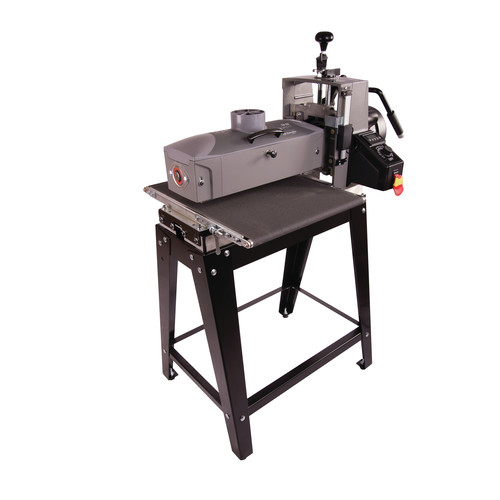

SuperMax SUPMX-71632 16-32 Drum Sander with Open Stand

SuperMax Model: sxmnsupmx-71632
$1,549.00
See More
See Less
free shipping
This item qualifies for
FREE SHIPPING
free shipping
This item ships directly from manufacturer
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: Cancer -- www.P65Warnings.ca.gov
SuperMax SUPMX-71632 16-32 Drum Sander with Open Stand SuperMax Model: sxmnsupmx-71632
price for vip customer
$1,549.00

OR PAY WITH

Product Features & specs :

SuperMax SUPMX-71632 16-32 Drum Sander with Open Stand

Details

The 16-32 Drum Sander (#71632) is the newest member of SuperMax Tools drum sander family which was designed with new features to improve productivity.

Features:

  • Built-in DRO (digital read out): maintain material thicknesses to increase accuracy and quality.

  • Turbo Vented dust port: increases airflow to your dust collector by 15%.

  • Rear placement of the Gear Motor: improve conveyor belt tracking

  • These new features complement the same great features SuperMax Tools have provided for years.

  • Patented Fast Lever: allows quick adjustments for wide and narrow stock.

  • INTELLISAND Technology: prevents gouging, damaging, or burning material.

  • Exceptional Laguna SuperMax Features. We’ve addressed issue common with other drum sanders by engineering features that are exclusive to our 16-32 machines. No other drum sander on the market has these features! Patented “Quick Lever Adjustment” which allows height adjustments from 0 - 3 in. with one pull of a lever versus 48 revolutions of a hand wheel greatly reducing set-up time and increases productivity.

  • Includes build-in Digital Read Out which helps maintain consistent thicknesses to increase accuracy and quality. A newly designed Turbo Vented Dust Port increases CFM air-flow to dust collectors by 15%. Simple alignment feature - just one nut adjusts the conveyor to parallel the sanding head, making aligning the conveyor to the sanding head fast and easy.

  • Indexed alignment setting - the fast lever is an indexed alignment setting for narrow and wide stock. When sanding stock wider than 16 in., the index lever will properly adjust the conveyor for flawless wide sanding. Drum will never go “out of alignment” - the drum carriage is bolted to the base, preventing any movement or alignment issues.

What’s Included:

  • 16-32 Drum Sander with Open Stand - SUPMX-71632

Power Source

Corded

Board Width (Min.)

16 in

PreWired Voltage

110V

Amperage

15

UL Safety

Yes

Drum Speed (RPM)

1740

Board Thickness (Min.)

1/32 in

Wifi compatibility

No

Conveyor Speed (FPM)

0 - 10

Bearing Diameter

OD - 52 mm

Bluetooth Compatibility

No

Motor Type

Brushed

Board Length (Min.)

2-1/4 in

Drum Length

16 in

Board Thickness (Max.)

3 in

CSA Safety

Yes

Dust Port Size

4 in

Conveyor Motor

43 in-lbs Torque/Direct Drive/DC

Motor Phase

1

Horsepower

1.5

Voltage

110V

Drum Diameter

5 in

ETL Safety

Yes

Length

22 in.

Width

34 in.

Height

48 in.

Weight

158 lbs.

Warranty Term

2 Year
